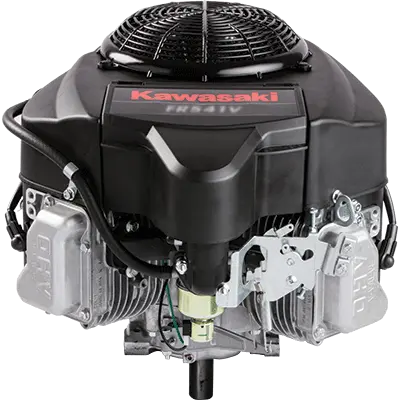

The FR541V 4-cycle engine brings pro power home.
This forced air-cooled V-twin vertical shaft engine features an internally vented
carburetor and cast-iron cylinder liners.
Overhead v-valve
90° V-twin
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Internally vented carburetor
Rotating grass screen
Cast-iron cylinder liners
Single-stage air filter
Model: FR541V-DS00S
1" x 3-5/32" (25.4mm x 80mm)
15.0 Horse Power
Starter: Electric Bendix Starter
Coil: 15 AMP
Air Filtration: Single Stage Air Fintration
Specifications
Displacement
603 cc (36.8 cu. in.)
Number of Cylinders 2
Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)
Compression Ratio
8.1:1
Oil capacity w/filter
1.8 U.S. qt ( 1.7 liters)
Maximum Power
15.0 hp (11.2 kW)
at 3,600 RPM
Maximum Torque
31.7 ft lbs (43.0 N·m)
at 2,000 RPM
Dry Weight
80.9 lbs (36.7 kgs)
