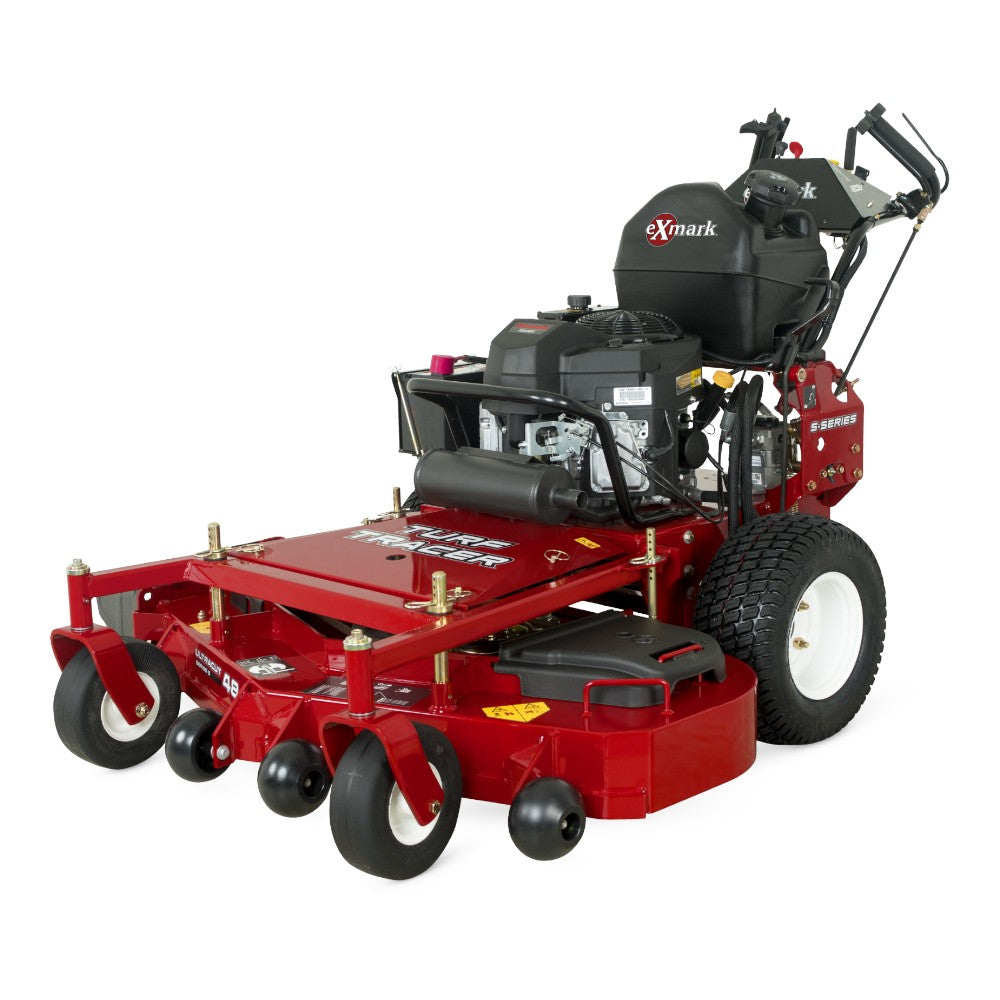

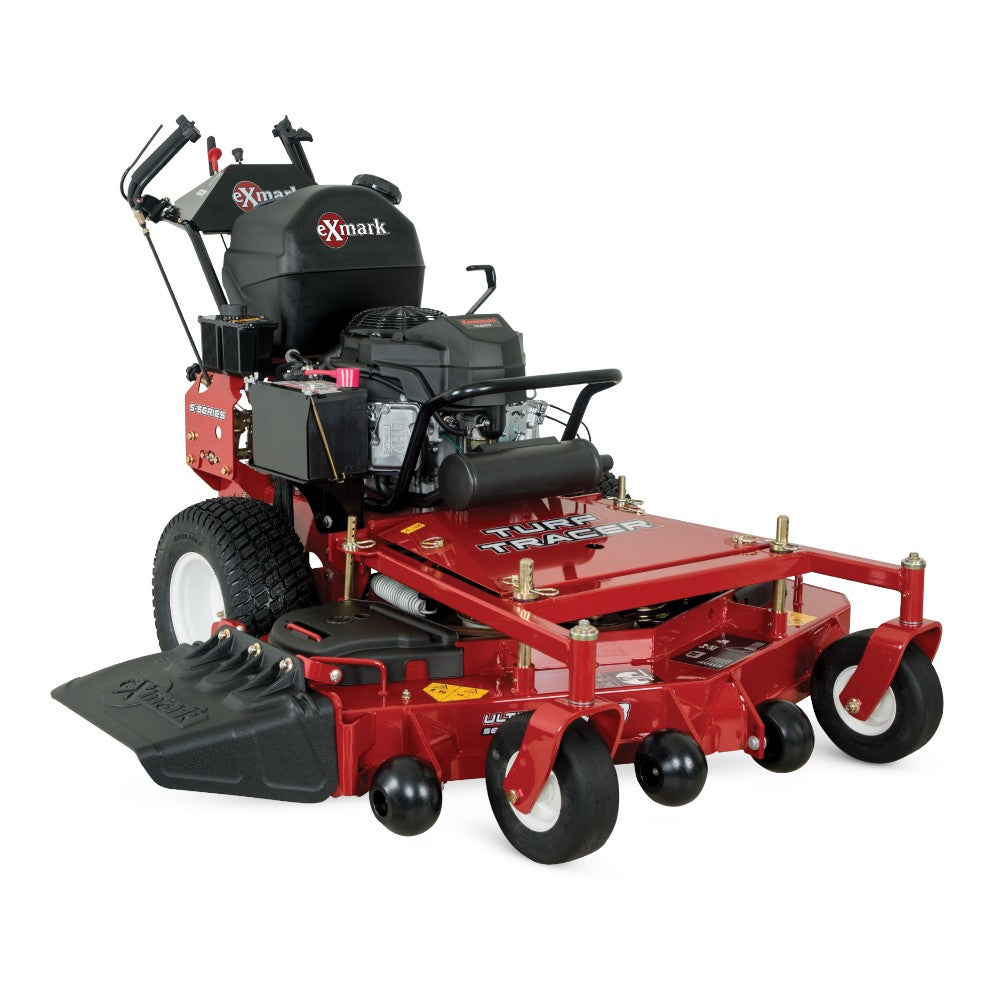

Exmark 52" TTS600GKA523E0 ECS Controls Elect
Exmark 52" TTS600GKA523E0 ECS Controls Elect
*Prices are subject to change without notice.
Applicable Program fees after Taxes will be added on-top of the standard items price. Credit Card Fee and Cashiers Check: 2% fee added to total amount
Low stock
SKU
TTS600GKA523E0Pick-up: Ready in 2 hours during normal business hours, Monday to Saturday. If product is not available in stock, or in backorder, customer will be notified.
Specifications for model# TTS600GKA523E0
Equipment
Drive Tires: 16 x 6.5-8, 4-ply Turf Master®
Drive Wheel Release: Allows unit movement without engine running.
Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Casters: .38" thick caster yoke arms
Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Front Caster Tires: 9 x 3.5-4, smooth-tread, semi-pneumatic.
Parking Brake: Lever-actuated mechanical compression.
Electrical: No battery, recoil start.
Cup Holder: No
Width: 64.3 in. (163.3 cm)
Length: 75.9 in. (192.8 cm)
Height: 42.0 in. (106.7 cm)
Power Components
Speed: Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse.Engine Brand: Kawasaki®
Engine Model: FS600V
Engine Type: Carbureted
Engine Series: V-Twin
Engine Speed: 3,600 rpm
Engine Displacement: 603
Air Filter: Standard Engine 's air filter
Drive: Hydro-Drive
Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts.
PTO Engagement: Electromagnetic 105 ft-lbs clutch.
Fuel Capacity: 5-gallon (18.9-L) fuel tank.
Fuel Indicator: None
Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.
Carb Compliant: No
Fuel Type: Gas Carbureted
Decks
Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Deck Style: Floating Deck
Width/Cutting Deck: 52"
Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blades: 3 Blades at 16.25" Length
Blade Tip Speed: Approximately 18,500 fpm.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 5.40"-diameter cutter housing and 1.0†diameter spindle tube.
Dimensions
Curb Weight: 690
- Orders placed before 1pm will ship the same day, Monday through Friday. All orders placed on Saturday & Sunday will be shipped on Monday.
