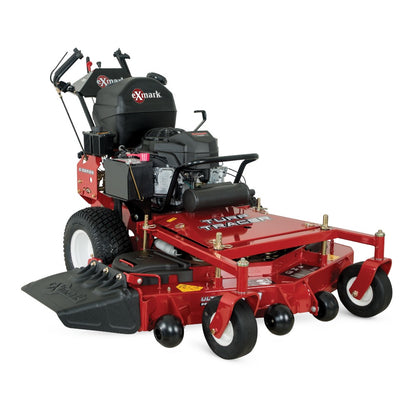

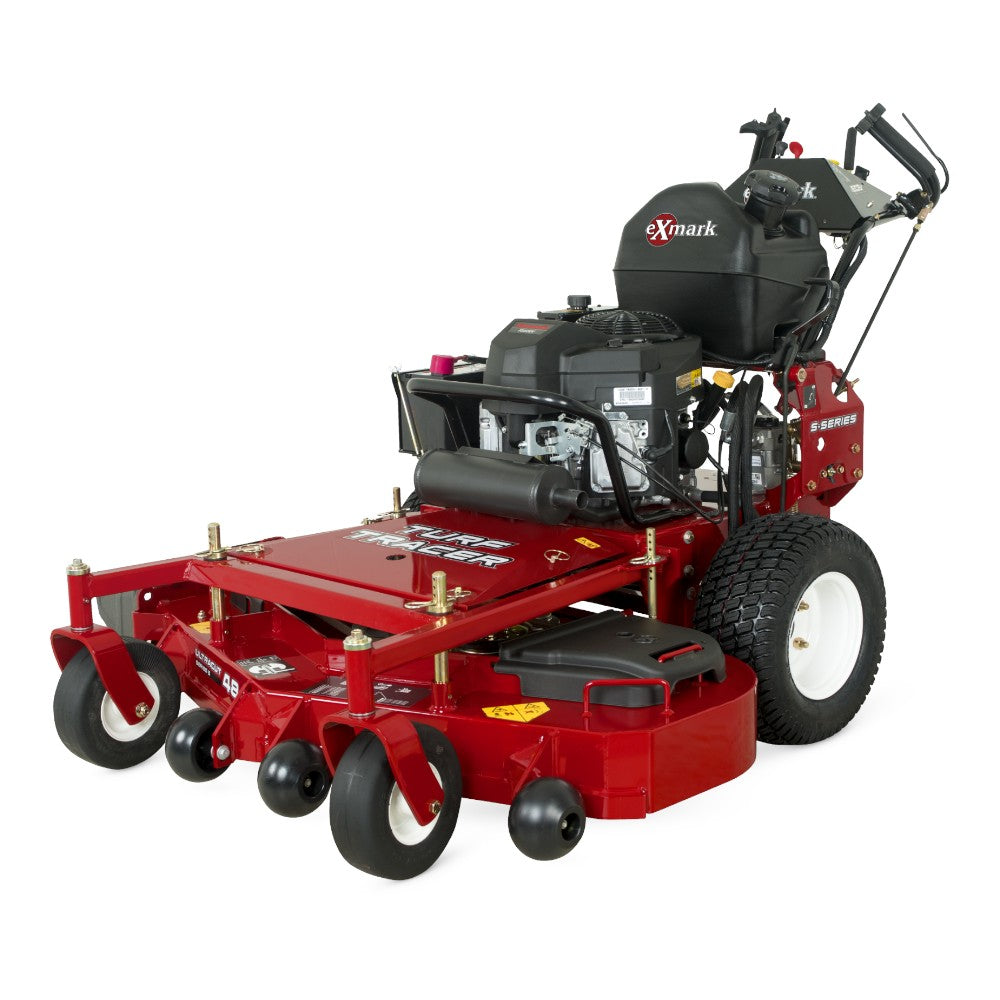

Exmark Turf Tracer S-Series 48" Walk-Behind w/ FS600V

Specifications for model# TTS600GKA483E0

Equipment

Drive Tires: 16 x 6.5-8, 4-ply Turf Master®

Drive Wheel Release: Allows unit movement without engine running.

Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine

Casters: .38" thick caster yoke arms

Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.

Front Caster Tires: 9 x 3.5-4, smooth-tread, semi-pneumatic.

Parking Brake: Lever-actuated mechanical compression.

Electrical: 12-volt battery with 15-amp alternator.

Cup Holder: No

Width: 59.5in. (151.1 cm)

Length: 73.7 in. (187.2 cm)

Height: 42.0 in. (106.7 cm)

Power Components

Speed: Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse.

Engine Brand: Kawasaki®

Engine Model: FS600V

Engine Type: Carbureted

Engine Series: V-Twin

Engine Speed: 3,600 rpm

Engine Displacement: 603

Air Filter: Standard Engine Manufacturer's air filter

Drive: Hydro-Drive

Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts.

PTO Engagement: Electromagnetic 105 ft-lbs clutch.

Fuel Capacity: 5-gallon (18.9-L) fuel tank.

Fuel Indicator: None

Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.

Carb Compliant: No

Fuel Type: Gas Carbureted

Decks

Deck Style Description: Fixed UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.

Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.

Deck Style: Floating Deck

Width/Cutting Deck: 48"

Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments

Blades: 3 Blades at 16.25" Length

Blade Tip Speed: Approximately 18,500 fpm.

Blade Spindles: No maintenance, sealed and non-greasable spindles; 5.40"-diameter cutter housing and 1.0” diameter spindle tube.

Dimensions

Curb Weight: 606
