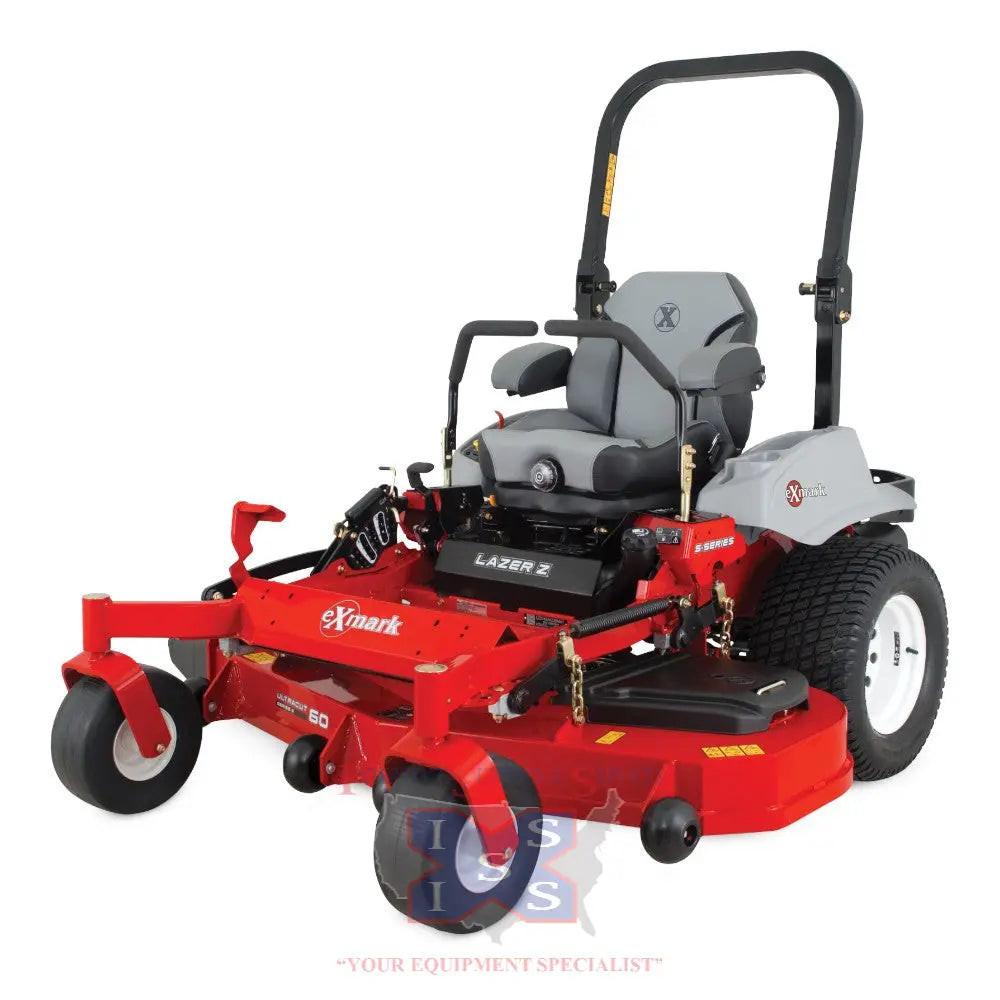

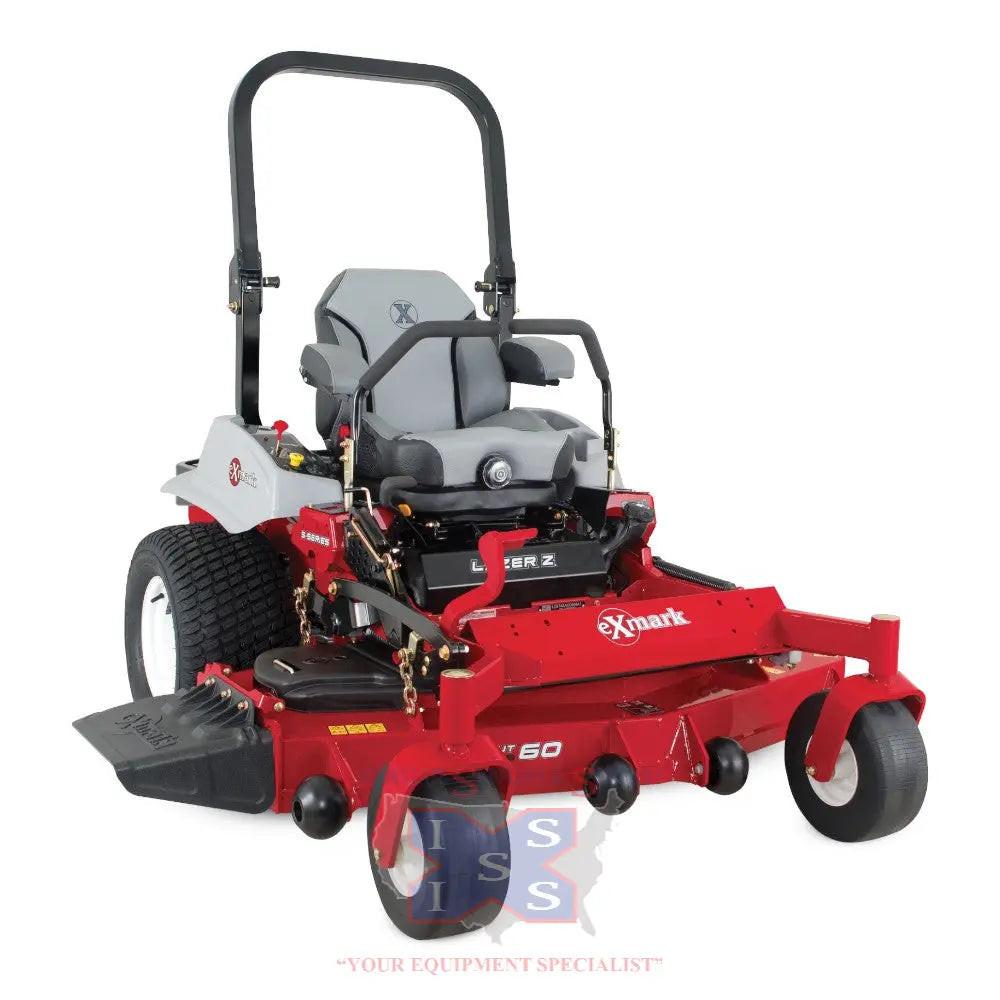

Exmark 72" LZS749AKC724A1 Kohler ECV749 EFI 4 Series Deck

Specifications for model # LZS749AKC724A1

Equipment

Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98") diameter spindle shaft and splined blade driver.

Drive Tires: 24 x 12-12, 4 ply Turf Master®

Cup Holder: Standard

Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.

Steering Control: Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.

Front Caster Tires: 13 x 6.5-6, smooth-tread, semi-pneumatic.

Parking Brake: Lever-actuated disc brake.

Seat: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Electrical: 12-volt battery with 20-amp alternator.

Power Components

Engine Brand: Kohler®

Engine Model: ECV749

Engine Displacement: 749

Engine Series: Commandâ„¢ EFI

Engine Type: Electronic Fuel Injected

Engine Speed: 3,750 rpm

Air Filter: Heavy-duty canister air filtration system

Fuel Type: Gas EFI

Fuel Capacity: 12-gallon (45.4-L), single fuel tank with single fill location.

Fuel Indicator: Yes - electronic Sender

Drive: Hydro-Drive

Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.

Speed Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse.

Carb Compliant: Yes

Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

ROPS: 2-post foldable ROPS standard with seat belt and latch.

PTO Engagement: MagStop electromagnetic 200-ft-lb clutch

Drive Wheel Release: Allows unit movement without engine running.

Casters: .50" thick caster yoke arms.

Decks

Width / Cutting Deck 72"

Deck Style: Floating Deck

Deck Style Descriptio:n Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

Blade Tip Speed: Approximately 18,500 fpm.

Cutting Heights: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.

Blades: 3 Blades at 24.50" Length

Dimensions

Width: 84.9 in. (215.6 cm)

Length: 86.1 in. (218.7 cm)

Height: 70 in. (177.8 cm)

Curb Weight: 1305
